Product Summary
The TMS320C6713BGDP300 is a floating-point digital signal processor. It is based on the high-performance, advanced very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making this DSP an excellent choice for multichannel and multifunction applications. Operating at 225 MHz, the TMS320C6713BGDP300 delivers up to 1350 million floating-point operations per second (MFLOPS), 1800 million instructions per second (MIPS), and with dual fixed-/floating-point multipliers up to 450 million multiply-accumulate operations per second (MMACS). Operating at 300 MHz, the TMS320C6713BGDP300 delivers up to 1800 million floating-point operations per second (MFLOPS), 2400 million instructions per second (MIPS), and with dual fixed-/floating-point multipliers up to 600 million multiply-accumulate operations per second (MMACS).
Parametrics
TMS320C6713BGDP300 absolute maximum ratings: (1)Supply voltage range, CVDD: -0.3 V to 1.8 V; (2)Supply voltage range, DVDD: -0.3 V to 4 V; (3)Input voltage range: -0.3 V to DVDD + 0.5 V; (4)Output voltage range: -0.3 V to DVDD + 0.5 V; (5)Operating case temperature ranges, TC: (default): 0℃ to 90℃, (A version) [GDPA/ZDPA-200, PYPA-167,-200]: -40℃ to105℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
TMS320C6713BGDP300 features: (1)Highest-Performance Floating-Point Digital; (2)Signal Processor (DSP): TMS320C6713B: Eight 32-Bit Instructions/Cycle, 32/64-Bit Data Word, 300-, 225-, 200-MHz (GDP and ZDP), and 225-, 200-, 167-MHz (PYP) Clock Rates; (3)Advanced Very Long Instruction Word (VLIW) TMS320C67x. DSP Core: Eight Independent Functional Units: 2 ALUs (Fixed-Point), 4 ALUs (Floating-/Fixed-Point), 2 Multipliers (Floating-/Fixed-Point); (4)Instruction Set Features: Native Instructions for IEEE 754, Single- and Double-Precision, Byte-Addressable (8-, 16-, 32-Bit Data).

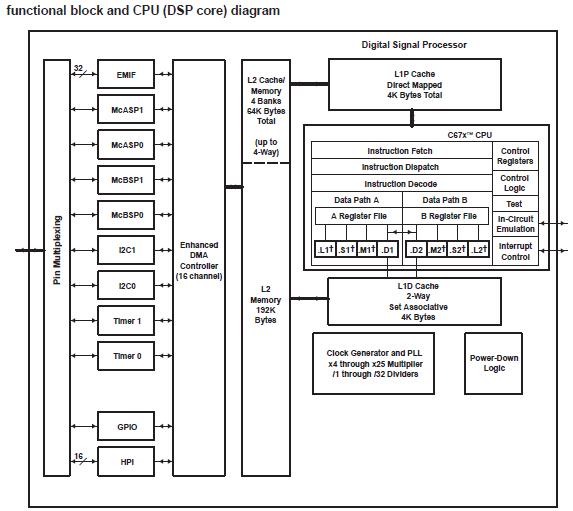

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320C6713BGDP300 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Floating-Pt Dig Sig Proc |
Data Sheet |
|
|
||||||||||||
