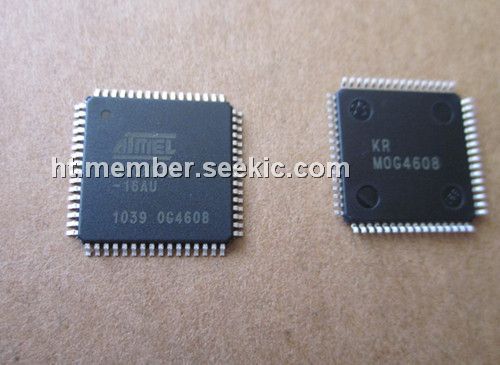

AT90CAN32-16AU

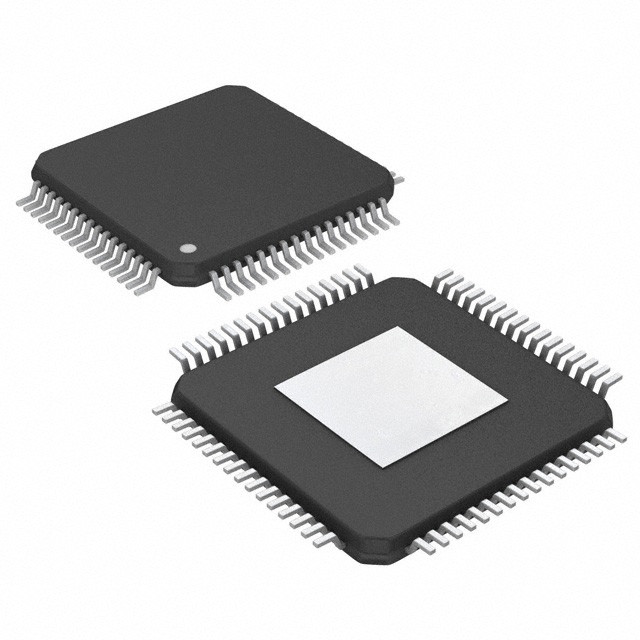

CMOS 8-bit microcontroller, 64-TQFP, 16MHz, 2.7 V ~ 5.5 V, AT90CAN32-16AU

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: AT90CAN32-16AU

Brand:: ATMEL Corporation - ATMEL | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-14

From Other Seller

Part Number:AT90CAN32-16AU
US $1.00 - 5.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

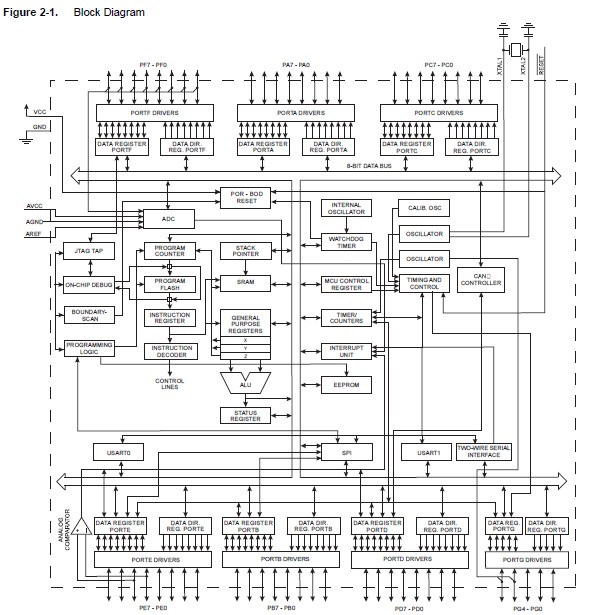

The AT90CAN32-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90CAN32-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AT90CAN32-16AU provides the following features: 32K bytes of In-System Programmable Flash with Read-While-Write capabilities, 1K/2K bytes EEPROM, 2K/4K bytes SRAM, 53 general purpose I/O lines, 32 general purpose working registers, a CAN controller, etc. It is also used for accessing the On-chip Debug system and programming and five software selectable power saving modes.

Parametrics

AT90CAN32-16AU absolute Maximum Ratings: (1)Industrial Operating Temperature: – 40℃ to +85℃; (2)Storage Temperature: – 65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: – 0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground:– 0.5V to +13.0V; (5)Voltage on VCC with respect to Ground: – 0.5V to 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

AT90CAN32-16AU features: (1)High-performance, Low-power AVR? 8-bit Microcontroller; (2)Advanced RISC Architecture: 133 Powerful Instructions – Most Single Clock Cycle Execution; 32 x 8 General Purpose Working Registers + Peripheral Control Registers; Fully Static Operation; Up to 16 MIPS Throughput at 16 MHz; On-chip 2-cycle Multiplier; (3)Non volatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 Compliant) Interface: Boundary-scan Capabilities According to the JTAG Standard; programming Flash (Hardware ISP), EEPROM, Lock & Fuse Bits; Extensive On-chip Debug Support; (5)CAN Controller 2.0A & 2.0B.
