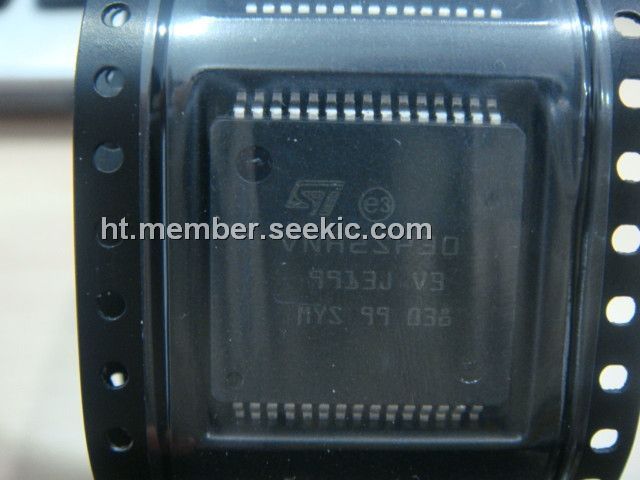

Product Summary
The VNH2SP30-E is a full bridge motor driver intended for a wide range of automotive applications. The VNH2SP30-E incorporates a dual monolithic High-Side drivers and two Low-Side switches. The High-Side driver switch is designed using STMicroelectronic’s well known and proven proprietary VIPower M0 technology that allows to efficiently integrate on the same die a true Power MOSFET with an intelligent signal/protection circuitry.
Parametrics
VNH2SP30-E absolute maximum ratings: (1)VCC Supply Voltage: + 41 V; (2)Imax Maximum Output Current (continuous): 30 A; (3)IR Reverse Output Current (continuous): -30 A; (4)IIN Input Current (INA and INB pins): +/- 10 mA; (5)IEN Enable Input Current (DIAGA/ENA and DIAGB/ENB pins): +/- 10mA; (6)Ipw PWM Input Current: +/- 10 mA; (7)VCS Current Sense Maximum Voltage: -3/+15 V; (8)Tc Case Operating Temperature: -40 to 150℃; (9)TSTG Storage Temperature: -55 to 150℃.
Features
VNH2SP30-E features: (1)output current: 30A; (2)5V logic level compatible inputs; (3)undervoltage and overvoltage shut-down; (4)overvoltage clamp; (5)thermal shut down; (6)cross-conduction protection; (7)linear current limiter; (8)very low stand-by power consumption; (9)pwm operation up to 20 KHz; (10)protection against: loss of ground and loss OF VCC; (11)current sense output proportional to motor current; (12)in compliance with the 2002/95/ec european directive.

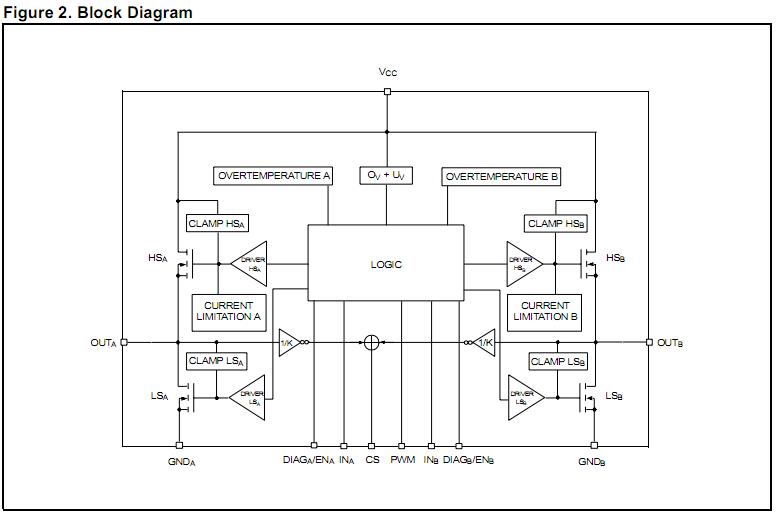

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VNH2SP30-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Auto Fully Integratd |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
VNH2SP30 |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers VIPOWER |
Data Sheet |
Negotiable |
|
||||||||||||
|
VNH2SP30-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Auto Fully Integratd |
Data Sheet |
|
|
||||||||||||
|
VNH2SP30TR-E |
STMicroelectronics |
Motor / Motion / Ignition Controllers & Drivers Auto Fully Integratd |
Data Sheet |
|
|
||||||||||||
