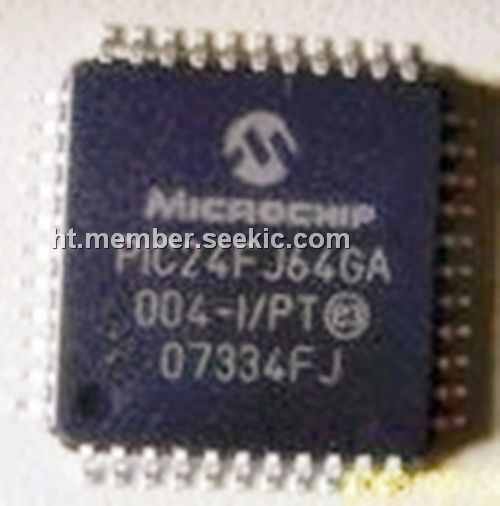

Product Summary

The PIC24FJ64GA004-I/PT is a 16-bit microcontroller with a broad peripheral feature set and enhanced computational performance. The PIC24FJ64GA004-I/PT offers a new migration option for those high-performance applications which may be outgrowing their 8-bit platforms, but don’t require the numerical processing power of a digital signal processor.

Parametrics

PIC24FJ64GA004-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40 to +135℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (4)Voltage on any combined analog and digital pin and MCLR, with respect to VSS: -0.3V to (VDD + 0.3V; (5)Voltage on any digital only pin with respect to VSS: -0.3V to +6.0V; (6)Voltage on VDDCORE with respect to VSS: -0.3V to +3.0V; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Maximum output current sunk by any I/O pin: 25 mA; (10)Maximum output current sourced by any I/O pin: 25 mA; (11)Maximum current sunk by all ports: 200 mA; (12)Maximum current sourced by all ports: 200 mA.

Features

PIC24FJ64GA004-I/PT features: (1)16-bit data and 24-bit address paths with the ability to move information between data and memory spaces; (2)Linear addressing of up to 12 Mbytes (program space) and 64 Kbytes (data); (3)A 16-element working register array with built-in software stack support; (4)A 17 x 17 hardware multiplier with support for integer math; (5)Hardware support for 32 by 16-bit division; (6)An instruction set that supports multiple addressing modes and is optimized for high-level languages such as ?Cí; (7)Operational performance up to 16 MIPS; (8)Two Crystal modes using crystals or ceramic resonators; (9)Two External Clock modes offering the option of a divide-by-2 clock output; (10)A Fast Internal Oscillator (FRC) with a nominal 8 MHz output, which can also be divided under software control to provide clock speeds as low as 31 kHz; (11)A Phase Lock Loop (PLL) frequency multiplier, available to the External Oscillator modes and the FRC oscillator, which allows clock speeds of up to 32 MHz.

Diagrams

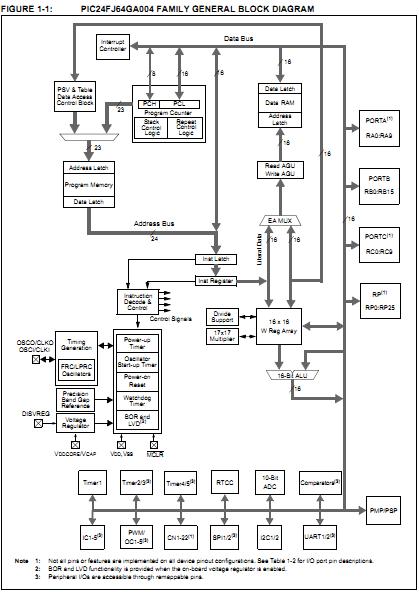

PIC24FJ64GA004-I/PT block diagram
