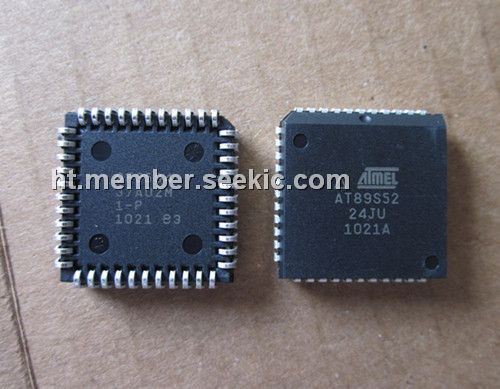

AT89S52-24JU

CMOS 8-bit microcontroller, 24MHz, 44-PLCC, 4 V ~ 5.5 V, AT89S52-24JU

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: AT89S52-24JU

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-14

From Other Seller

Part Number:AT89S52-24JU
US $1.00 - 5.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

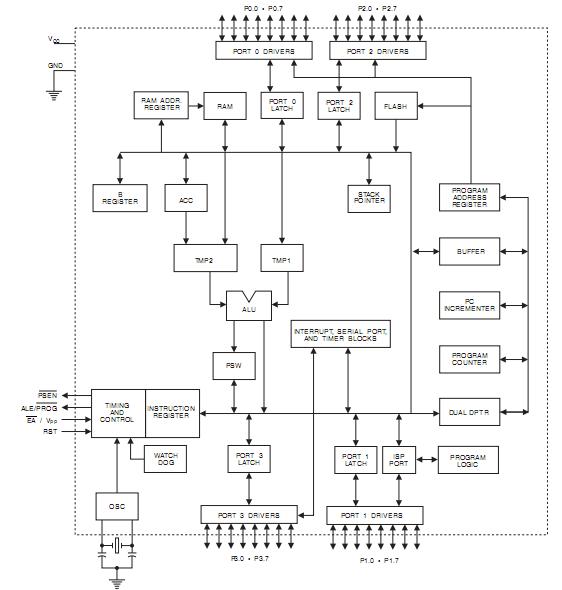

The AT89S52-24JU is a low-power, high-performance CMOS 8-bit microcontroller with 8K bytes of in-system programmable Flash memory. The AT89S52-24JU is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. The AT89S52-24JU provides the following standard features: 8K bytes of Flash, 256 bytes of RAM, 32 I/O lines, Watchdog timer, two data pointers, three 16-bit timer/counters, a six-vector two-level interrupt architecture, a full duplex serial port, on-chip oscillator, and clock circuitry.

Parametrics

AT89S52-24JU absolute maximum ratings: (1)Operating Temperature:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4)Maximum Operating Voltage:6.6V; (5)DC Output Current:15.0 mA.

Features

AT89S52-24JU features: (1)Compatible with MCS-51 ; (2)Products; (3)8K Bytes of In-System Programmable (ISP) Flash Memory: Endurance: 10,000 Write/Erase Cycles; (4)4.0V to 5.5V Operating Range; (5)Fully Static Operation: 0 Hz to 33 MHz; (6)Three-level Program Memory Lock; (7)256 x 8-bit Internal RAM; (8)32 Programmable I/O Lines; (9)Three 16-bit Timer/Counters; (10)Eight Interrupt Sources; (11)Full Duplex UART Serial Channel; (12)Low-power Idle and Power-down Modes; (13)Interrupt Recovery from Power-down Mode; (14)Watchdog Timer; (15)Dual Data Pointer; (16)Power-off Flag; (17)Fast Programming Time; (18)Flexible ISP Programming (Byte and Page Mode); (19)Green (Pb/Halide-free) Packaging Option.
