Product Summary
The MAX5410EEE is a dual, logarithmic taper digital potentiometer, with 32-tap points each, replace mechanical potentiometers in audio applications requiring digitally controlled resistors. The MAX5410EEE is a dual potentiometer with one wiper per potentiometer. An SPI-compatible serial interface controls the wiper positions. The applications of the MAX5410EEE are Stereo Volume Control, Fading and Balancing Stereo Signals and Mechanical Potentiometer Replacement.
Parametrics
MAX5410EEE absolute maximum ratings: (1)VDD, VLOGIC, CS, SCLK, DIN to GND: -0.3V to +6V; (2)H_, L_, and W_ to GND: -0.3V to (VDD + 0.3V); (3)DOUT to GND: -0.3V to (VDD + 0.3V); (4)AGND to GND: -0.3V to +0.3V; (5)Input and Output Latchup Immunity: ±200mA; (6)Maximum Continuous Current into H_, L_, and W_: ±500μA; (7)Continuous Power Dissipation: 666.7mW; (8)Operating Temperature Range: -40 to +85℃; (9)Storage Temperature Range: -60 to +150℃; (10)Maximum Junction Temperature: +150℃; (11)Lead Temperature (soldering, 10s): +300℃.
Features
MAX5410EEE features: (1)Log Taper with 2dB Steps Between Taps; (2)32-Tap Positions for Each Wiper; (3)Small 16-Pin QSOP/QFN Packages ; (4)Single-Supply Voltage Operation +4.5V to +5.5V; (5)Low 0.5μA Standby Supply Current; (6)Zero-Crossing Detection for Clickless Switching; (7)Mute Function to -90dB; (8)10kΩ Fixed Resistance Value; (9)3-Wire SPI-Compatible Serial Data Interface; (10)Power-On Reset: Wiper Goes to Maximum Attenuation; (11)Digital Output for Readback and Daisy-Chaining Capabilities.

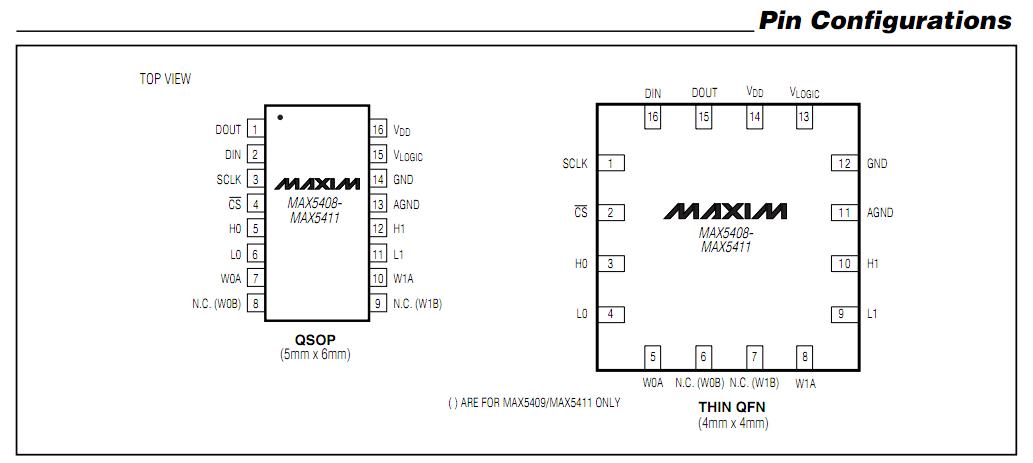

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX5410EEE |
Maxim Integrated Products |
Digital Potentiometer ICs |
Data Sheet |
Negotiable |
|
|||||||||||
MAX5410EEE+ |
Maxim Integrated Products |
Digital Potentiometer ICs Dual Audio Log Taper |
Data Sheet |
|
|
|||||||||||
MAX5410EEE+T |
Maxim Integrated Products |
Digital Potentiometer ICs Dual Audio Log Taper |
Data Sheet |
|
|
|||||||||||
MAX5410EEE-T |
Maxim Integrated Products |
Digital Potentiometer ICs |
Data Sheet |
Negotiable |
|
