Product Summary

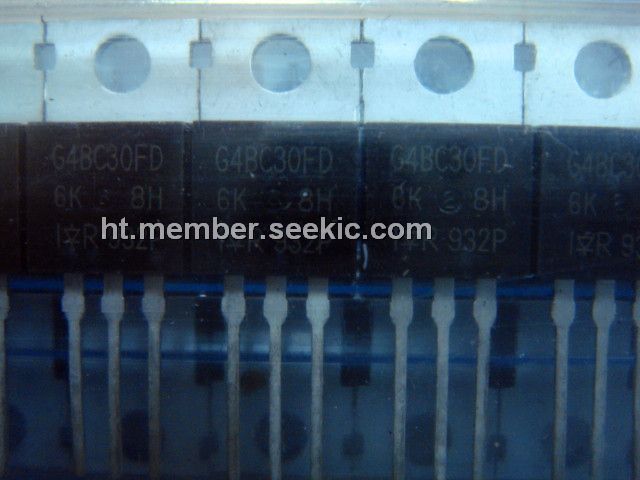

The IRG4BC30FDPBF is a fast CoPack IGBT.
Parametrics
IRG4BC30FDPBF absolute maximum ratings: (1)VCES, collector-to-emitter voltage: 600V; (2)IC, continuous collecotr: 31A; (3)ICM, pulsed collector current: 124A; (4)ILM, clamped inductive load current: 124A; (5)IF, diode continuous forward current: 12A; (6)IFM, diode maximum forward current: 120A; (7)VGE, gate-to-emitter voltage: ±20V; (8)PD, maximum power dissipation: 100W; (9)Tj, Tstg, operating junction and storage temperature range: -55 to 150℃.
Features
IRG4BC30FDPBF features: (1)Fast: Optimized for medium operating frequencies (1-5 kHz in hard switching, >20kHz in resonant mode); (2)Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3; (3)IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations; (4)Industry standard TO-220AB package; (5)Lead-Free.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRG4BC30FDPBF |
International Rectifier |
IGBT Transistors 600V Fast 1-8kHz |
Data Sheet |
|
|
||||||||||||
