Product Summary
The IRCZ34PBF is a power MOSFET. It provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The IRCZ34PBF provides an accureate fraction of the drain current through the additional two leads to be used for control or protection of the device.
Parametrics
IRCZ34PBF absolute maximum ratings: (1)ID, continuous drain current: 30A; (2)IDM, pulsed drain current: 120A; (3)VGS, gate-to-source voltage: ; (4)EAS, single pulse avalanche energy: 15mJ; (5)Tj, Tstg, operating junction and storage temperature ragne: -55 to 175℃.
Features
IRCZ34PBF features: (1)dynamic dv/dt rating; (2)current sense; (3)175℃ operating temperature; (4)fast switching; (5)ease of paralleling; (6)simple drive requiremtns; (7)lead free.

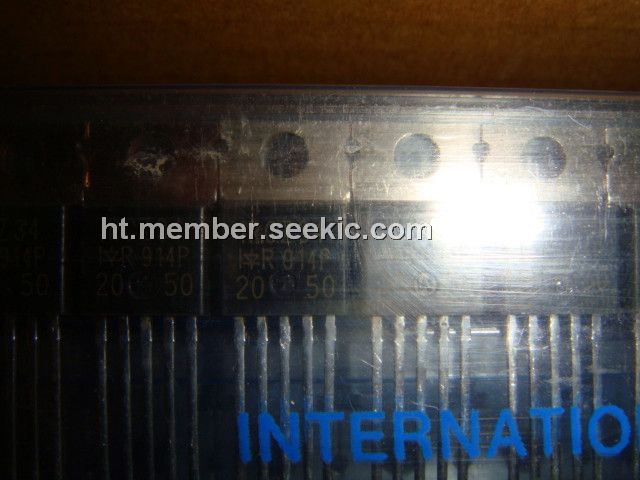

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRCZ34PBF |
Vishay Semiconductors |
MOSFET N-Chan 60V 30 Amp |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
IRCZ24 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
IRCZ34 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
IRCZ34PBF |
Vishay Semiconductors |
MOSFET N-Chan 60V 30 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRCZ44 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
IRCZ44PBF |
Vishay Semiconductors |
MOSFET N-Chan 60V 50 Amp |
Data Sheet |
Negotiable |
|
||||
|
IRCZ24PBF |
Vishay Semiconductors |
MOSFET N-Chan 55V 26 Amp |
Data Sheet |
Negotiable |
|
||||
