Product Summary

The HX5008NL is a 1000BASE-T magnetics module. It is designed to Support 1:1 Turns Ratio Transceivers.

Parametrics

HX5008NL absolute maximum ratings: (1)Insertion Loss (dB MAX): 1 dB at 1-100MHz; (2)Return Loss (dB MIN): -18 dB at 1-30MHz, -18 dB at 40MHz, -16 dB at 50MHz, -12 dB at 60-80MHz, -10 dB 100MHz; (3)Differential to Common Mode Rejection (dB MIN): -43 dB at 30MHz, -37 dB at 60MHz, -33 dB at 100MHz; (4)Crosstalk (dB MIN): -43 dB at 30MHz, -37 dB at 60MHz, -33 dB at 100MHz; (5)Hipot (VRMS MIN): 1500 V.

Features

HX5008NL features: (1)RoHS-5 peak reflow temperature rating 235℃; (2)RoHS-6 peak reflow temperature rating 245℃; (3)Meets IEEE 802.3 specification.

Diagrams

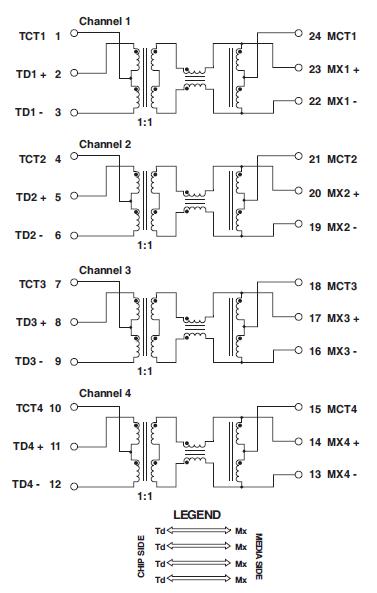

HX5008NL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

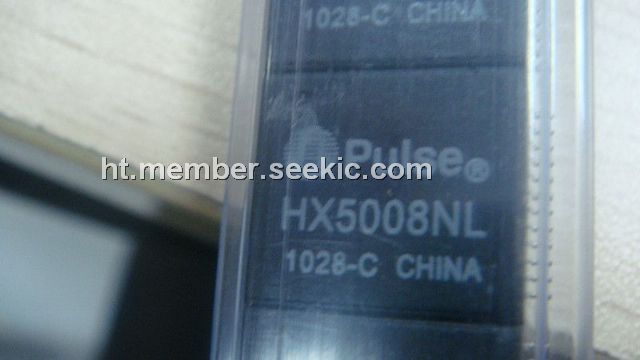

HX5008NL
HX5008NL

Pulse

Transformers Audio & Signal GIGABIT - COMPACT

Data Sheet

0-1: $6.04
1-10: $4.58
10-100: $3.83
100-500: $3.56
HX5008NLT
HX5008NLT

Pulse

Transformers Audio & Signal GIGABIT - COMPACT

Data Sheet

0-156: $6.04
156-350: $6.04
350-500: $5.36
500-1000: $5.01
