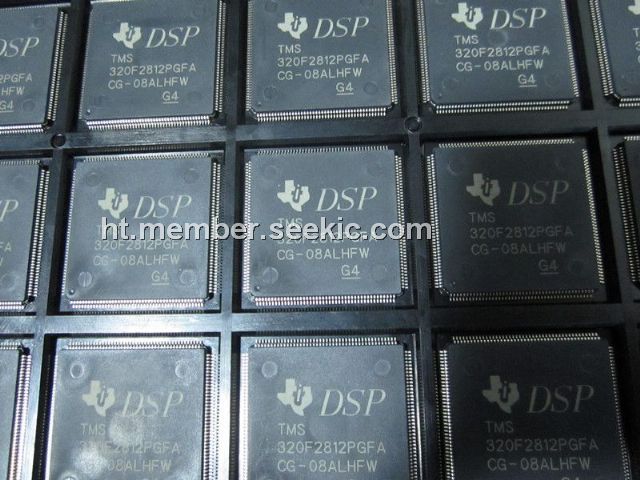

TMS320F2812PGFA

Digital Signal Processor, 176-LQFP, 32BIT, 256KB, 150MHZ, 1.89V, ±20 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~50.00

PartNumber:: TMS320F2812PGFA

Brand:: Texas Instruments - TI | Pack: LQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:TMS320F2812PGFA
US $1.00 - 50.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TMS320F2812PGFA is a Digital Signal Processor. It is a highly integrated, high-performance solution for demanding control applications.

Parametrics

TMS320F2812PGFA absolute maximum ratings: (1)Supply voltage range:–0.3 V to 4.6 V; (2)Supply voltage range:–0.5 V to 2.5 V; (3)Input voltage range:–0.3 V to 4.6 V; (4)Output voltage range:–0.3 V to 4.6 V; (5)Input clamp current:±20 mA; (6)Output clamp current:±20 mA; (7)Operating ambient temperature ranges:A version:–40℃ to 85℃, S version:–40℃ to 125℃, Q version:–40℃ to 125℃; (8)Junction temperature range:–40℃ to 150℃; (9)Storage temperature range:–65℃ to 150℃.

Features

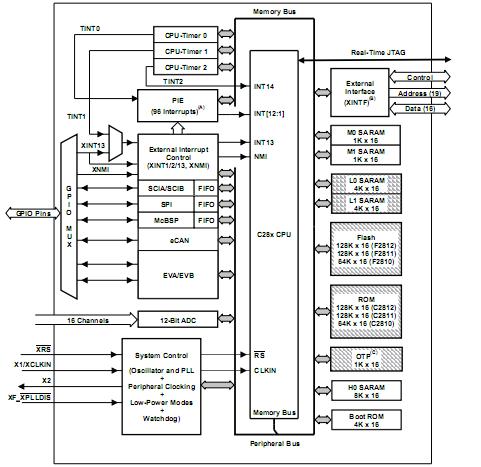

TMS320F2812PGFA features: (1)16 x 16 and 32 x 32 MAC Operations; (2)16 x 16 Dual MAC; (3)Harvard Bus Architecture; (4)Atomic Operations; (5)Fast Interrupt Response and Processing; (6)Unified Memory Programming Model; (7)4M Linear Program/Data Address Reach; (8)Code-Efficient (in C/C++ and Assembly); (9)Over 1M x 16 Total Memory; (10)Programmable Wait States; (11)Programmable Read/Write Strobe Timing; (12)Three Individual Chip Selects; (13)With Software Boot Modes; (14)Standard Math Tables; (15)Dynamic PLL Ratio Changes Supported; (16)On-Chip Oscillator; (17)Watchdog Timer Module; (18)Three External Interrupts; (19)Peripheral Interrupt Expansion (PIE) Block That Supports 45 Peripheral Interrupts; (20)Three 32-Bit CPU-Timers; (21)Serial Peripheral Interface (SPI); (22)Two Serial Communications Interfaces(SCIs), Standard UART; (23)Enhanced Controller Area Network (eCAN); (24)Multichannel Buffered Serial Port (McBSP).
