Product Summary
The STM32F103R6T6A is a Low-density performance line, ARM-based 32-bit MCU with 16 or 32 KB Flash, USB, CAN, 6 timers, 2 ADCs, 6 communication interfaces. The STM32F103R6T6A incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 32 Kbytes and SRAM up to 6 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103R6T6A offers two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN. These features make the STM32F103R6T6A suitable for a wide range of applications:(1)Motor drive and application control; (2)Medical and handheld equipment; (3)PC peripherals gaming and GPS platforms; (4)Industrial applications: PLC, inverters, printers, and scanners; (5)Alarm systems, Video intercom, and HVAC.
Parametrics
STM32F103R6T6A absolute maximum ratings: (1)VDD–VSS, External main supply voltage (including VDDA and VDD): –0.3 to 4.0V; (2)VIN, Input voltage on five volt tolerant pin, VSS- 0.3 to +5.5V; Input voltage on any other pin: VSS-0.3 to VDD+0.3V; (3)|VDDx| Variations between different VDD power pins: 50mV; (4)|VSSX-VSS| Variations between all the different ground pins: 50mV.
Features
STM32F103R6T6A features: (1)2.0 to 3.6 V application supply and I/Os; (2)POR, PDR, and programmable voltage detector (PVD); (3)4-to-16 MHz crystal oscillator ; (4)Internal 8 MHz factory-trimmed RC; (5)Internal 40 kHz RC; (6)PLL for CPU clock; (7)32 kHz oscillator for RTC with calibration.

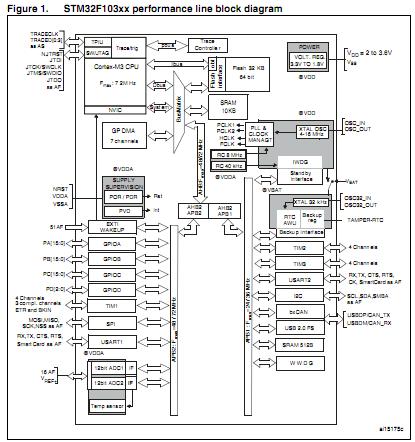

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

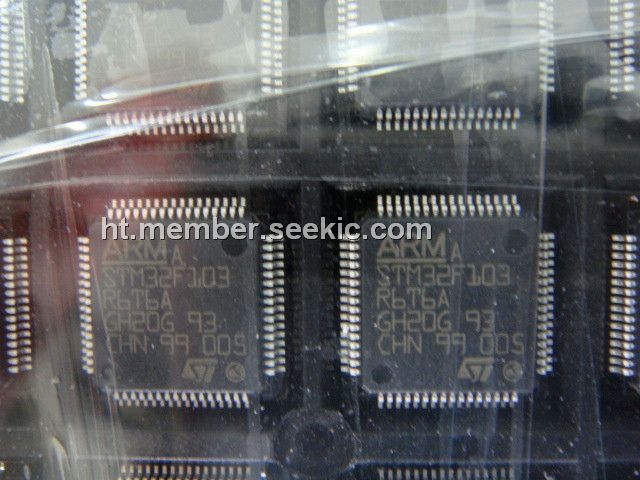

 STM32F103R6T6A |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 L/D PERF LN 64 PIN 32KB |
Data Sheet |
|
|
||||||||||||
