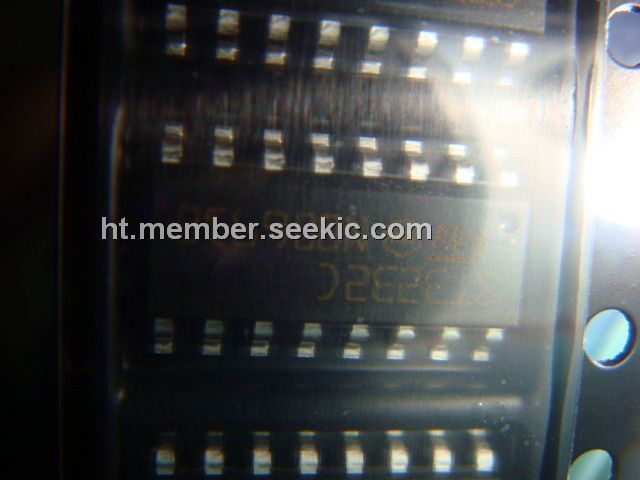

ST3232CDR

communication interface, 3V, 300μA supply current, 300Kbps minimum guaranteed data rate, DIP-16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~5.00

PartNumber:: ST3232CDR

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-25

From Other Seller

Part Number:ST3232CDR
US $0.10 - 5.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ST3232CDR is a 3V powered EIA/TIA-232 and V.28/V.24 communication interface with low power requirements, high data-rate capabilities. It has a proprietary low dropout transmitter output stage providing true RS-232 performance from 3 to 5.5V supplies. The ST3232CDR requires only four small 0.1mF standard external capacitors for operations from 3V supply. The device has two receivers and two drivers. The ST3232CDR is guaranteed to run at data rates of 250Kbps while maintaining RS-232 output levels. Typical applications of the ST3232CDR include Notebook, Subnotebook and Palmtop Computers, Battery Powered Equipment, Hand-Held Equipment, Peripherals and Printers.

Parametrics

ST3232CDR absolute maximum ratings: (1)VCC, Supply voltage: -0.3 to 6 V; (2)V+, Doubled voltage terminal: (VCC - 0.3) to 7 V; (3)V-, Inverted voltage terminal: 0.3 to -7 V; (4)V+ +|V-|: 13 V; (5)TIN, Transmitter input voltage range: -0.3 to 6 V; (6)RIN, Receiver input voltage range: ± 25 V; (7)TOUT, Transmitter output voltage range: ± 13.2 V; (8)ROUT, Receiver output voltage range: -0.3 to (VCC + 0.3) V; (9)tSHORT, Transmitter output short to gnd time: Continuous.

Features

ST3232CDR features: (1)300μA supply current; (2)300Kbps minimum guaranteed data rate; (3)6V/μs minimum guaranteed slew rate; (4)Meet EIA/TIA-232 specifications down to 3V; (5)Available in DIP-16, SO-16, SO-16 large and TSSOP16.
