Product Summary

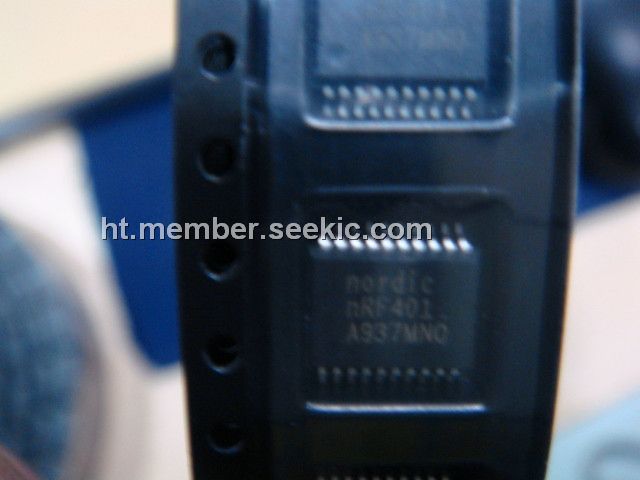

The NRF401 is a true single chip UHF transceiver designed to operate in the 433MHz ISM (Industrial, Scientific and Medical) frequency band. The NRF401 features Frequency Shift Keying (FSK) modulation and demodulation capability. The NRF401 operates at bit rates up to 20kbit/s. Transmit power can be adjusted to a maximum of 10dBm. Antenna interface is differential and suited for low cost PCB antennas. The NRF401 features a standby mode which makes power saving easy and efficient. The NRF401 operates from a single +3-5V DC supply.
Parametrics
NRF401 absolute maximum ratings: (1)Frequency, Channel#1/Channel#2: 433.92/434.33MHz; (2)Modulation: FSK; (3)Frequency deviation: ±15kHz; (4)Max. RF output power @ 400W, 3V: 10dBm; (5)Sensitivity @ 400W, BR=20 kbit/s: -105dBm; (6)Maximum bit rate: 20kbit/s; (7)Supply voltage: 2.7to 5.25V; (8)Receive supply current: 250mA; (9)Transmit supply current @ -10 dBm output power: 8mA; (10)Standby supply current: 8mA.
Features
NRF401 features: (1)True single chip FSK transceiver; (2)Few external components required; (3)No set up or configuration; (4)No coding of data required; (5)20kbit/s data rate; (6)2 channels; (7)Wide supply range; (8)Very low power consumption; (9)Standby mode.

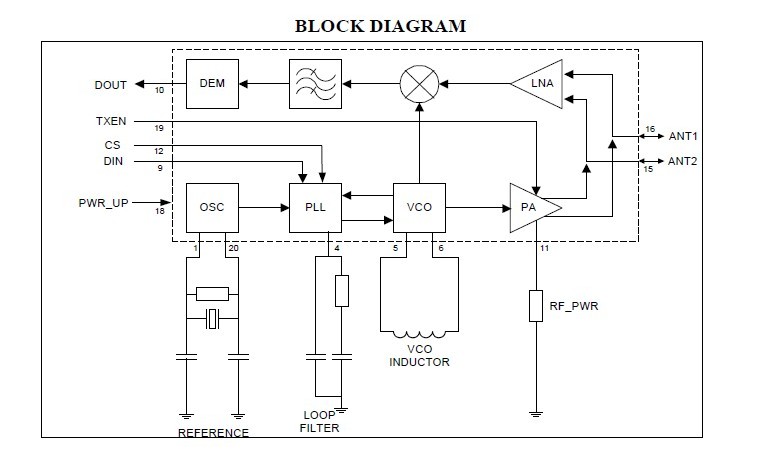

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 nRF401 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
nRF401 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
nRF402 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
NRF403 |
Other |
|
Data Sheet |
Negotiable |
|
||||
