Product Summary
The MAX529CWG is a type of octal, 8-Bit, serial DACs with output buffer which operates from a single supply up to 15V or from spilt supplies totaling up to 20V, including +5V/-15V, +12V/-5V, and +15V/-5V. Three output modes are serially programmable for each pair of 8 analog outputs. An unbuffered mode connects the internal R-2R DAC network directly to the output pin, reducing power consumption and avoiding the DC errors of the buffer.
Parametrics
MAX529CWG maximum ratings: (1)VDD to GND: -0.3V to +17V; (2)VDD to VSS: -0.3 to +22V; (3)VSS to GND: -17V to +0.3V; (4)Operating temperature: -40 to +85℃; (5)Storage temperature: -55 to +125℃; (6)Lead temperature: +300℃; (7)DOUT current: ±20mA.
Features
MAX529CWG features: (1)Now available in space-saving SSOP; (2)8-buffered noninverting outputs; (3)Buffer disable control; (4)2 pairs of differential reference inputs; (5)3-wire serial interface; (6)Single +5V or dual ±5V supply operation; (7)Low-power shutdown; (8)Stable driving output capacitance loads.

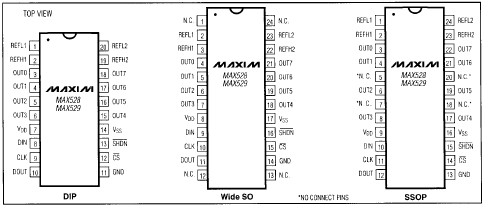

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX529CWG |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX529CWG+ |
Maxim Integrated Products |
DAC (D/A Converters) 8-Bit 8Ch Precision DAC |
Data Sheet |
|
|
||||||||||||
|
MAX529CWG+T |
Maxim Integrated Products |
DAC (D/A Converters) 8-Bit 8Ch Precision DAC |
Data Sheet |
|
|
||||||||||||
 |
MAX529CWG-T |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
