Product Summary
The K4S281632K-UC75 is a 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits, fabricated with SAMSUNG’s high performance CMOS technology. Synchronous design allows precise cycle controls with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the K4S281632K-UC75 to be useful for a variety of high bandwidth, high performance memory system applications.
Parametrics
K4S281632K-UC75 absolute maximum ratings:(1)Voltage on any pin relative to Vss:-1.0V to 4.6V;(2)Voltage on VDD supply relative to Vss:-1.0V to 4.6V;(3)Storage temperature:-55℃ to +150℃;(4)Power dissipation: 1W; (5) Short circuit current: 50mA.
Features
K4S281632K-UC75 features:(1)JEDEC standard 3.3V power supply;(2)JEDEC standard 3.3V power supply;(3)Four banks operation;(4)All inputs are sampled at the positive going edge of the system clock;(5)Burst read single-bit write operation;(6)L(U)DQM (x16) for masking;(7)Auto & self refresh;(8)64ms refresh period (4K Cycle);(9)RoHS compliant;(10)Support Industrial Temp (-40 to 85℃).

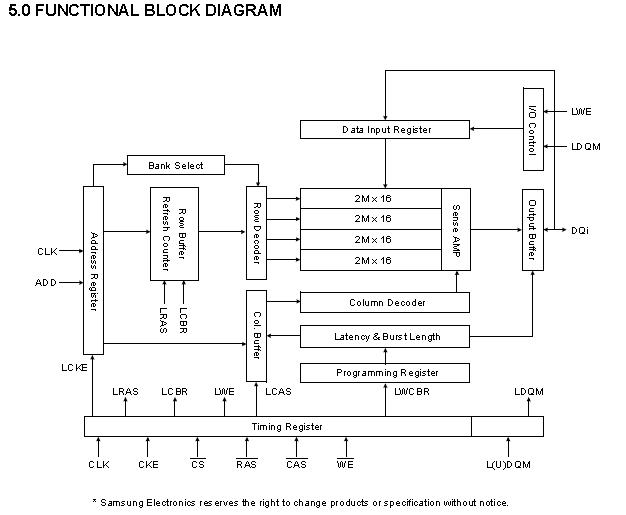

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 K4S281632K-UC75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
K4S280432A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S280432F-TC(L)75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S280432I |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S281632K-UC75 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S281632M |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
K4S281633D-RL(N) |
Other |
|
Data Sheet |
Negotiable |
|
||||
