Product Summary
The ATXMEGA16A4-AU is a low power, high performance and peripheral rich CMOS 8/16-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATXMEGA16A4-AU achieves throughputs approaching 1 Million Instructions Per Second (MIPS) per MHz allowing the system designer to optimize power consumption versus processing speed. The applicaitons of the ATXMEGA16A4-AU include: Industrial control, Climate control, Hand-held battery applications, Factory automation, ZigBee, Power tools, Building control, Motor control, HVAC, Board control, Networking, Metering, White Goods, Optical, Medical Applications.
Parametrics
ATXMEGA16A4-AU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin with respect to Ground: -0.5V to VCC+0.5V; (4)Maximum Operating Voltage: 3.6V; (5)DC Current per I/O Pin: 20.0 mA; (6)DC Current VCC and GND Pins: 200.0 mA.
Features
ATXMEGA16A4-AU features: (1)Four-channel DMA Controller with support for external requests; (2)Eight-channel Event System; (3)Five 16-bit Timer/Counters; (4)Five USARTs IrDA Extension on one USART; (5)Two Two-Wire Interfaces with dual address match (I2C and SMBus compatible); (6)Two SPIs (Serial Peripheral Interfaces) peripherals; (7)AES and DES Crypto Engine; (8)16-bit Real Time Counter with Separate Oscillator; (9)One Twelve-channel, 12-bit, 2 Msps Analog to Digital Converter; (10)One Two-channel, 12-bit, 1 Msps Digital to Analog Converter; (11)Two Analog Comparators with Window compare function; (12)External Interrupts on all General Purpose I/O pins; (13)Programmable Watchdog Timer with Separate On-chip Ultra Low Power Oscillator.

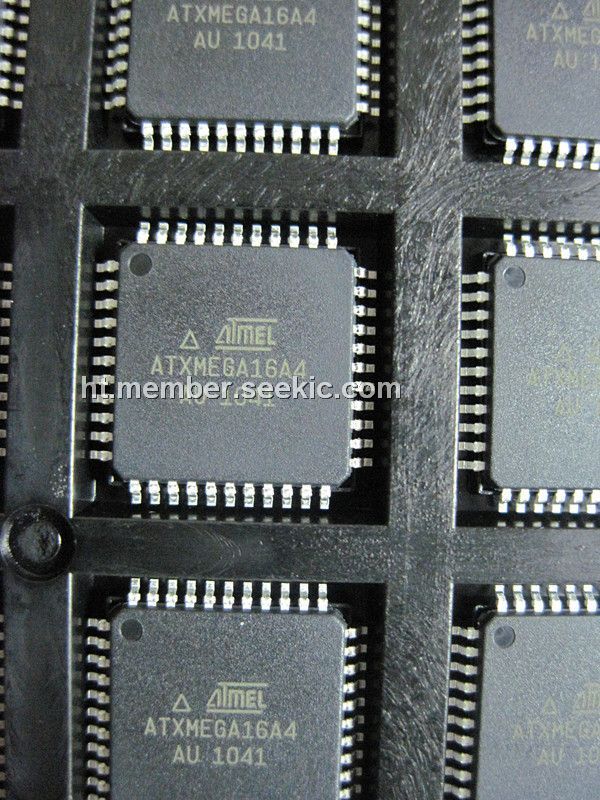

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATXMEGA16A4-AU |
Atmel |
8-bit Microcontrollers (MCU) 8/16 bit 1.6V-3.6V 16KB + 4KB |
Data Sheet |
|
|
||||||||||||
|
ATXMEGA16A4-AUR |
Atmel |
8-bit Microcontrollers (MCU) IND 3.6V IND TEMP 3.6V |
Data Sheet |
|
|
||||||||||||
