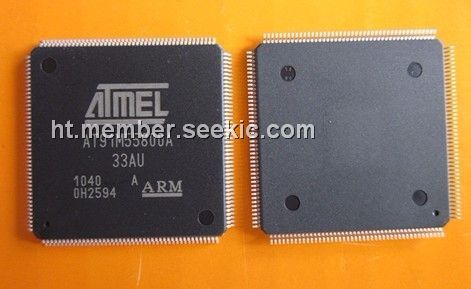

AT91RM55800A-33AU

16/32-bit Thumb-based Microcontroller, 176-lead LQFP, 2.7V to 3.6V, 0 Hz to 33 MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: AT91RM55800A-33AU

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:AT91RM55800A-33AU
US $1.00 - 10.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

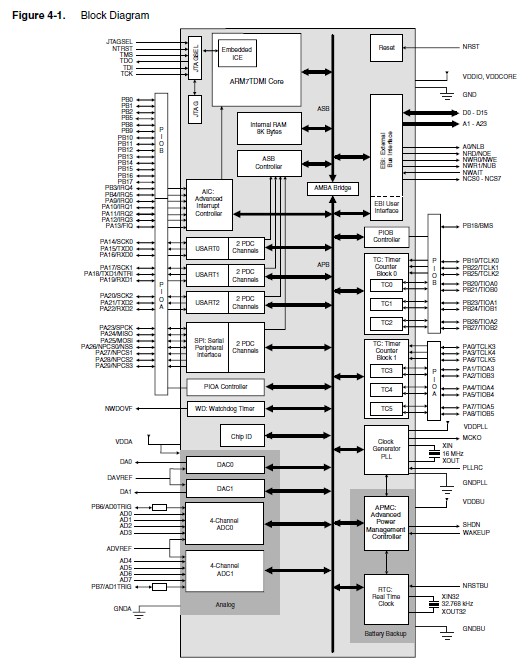

The AT91RM55800A-33AU is a member of the Atmel AT91 16/32-bit microcontroller family, which is based on the ARM7TDMI processor core. This processor has a high-performance 32-bit RISC architecture with a high-density 16-bit instruction set and very low power consumption. In addition, a large number of internally banked registers result in very fast exception handling, making the device ideal for real-time control applications. The AT91RM55800A-33AU is manufactured using Atmel high-density CMOS technology. By combining the ARM7TDMI processor core with an on-chip SRAM, a wide range of peripheral functions, analog interfaces and low-power oscillators on a monolithic chip, the Atmel AT91M55800A is a powerful microcontroller that provides a highly-flexible and cost-effective solution to many ultra low-power applications.

Features

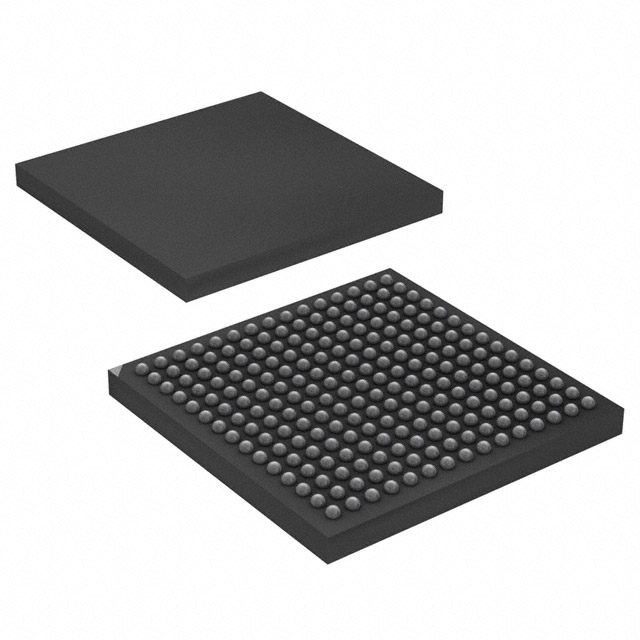

AT91RM55800A-33AU features: (1)Programmable Watchdog Timer; (2)8-channel 10-bit ADC; (3)2-channel 10-bit DAC; (4)Clock Generator with On-chip Main Oscillator and PLL for Multiplication: 3 to 20 MHz Frequency Range Main Oscillator; (5)Real-time Clock with On-chip 32 kHz Oscillator: Battery Backup Operation and External Alarm; (6)8-channel Peripheral Data Controller for USARTs and SPIs; (7)Advanced Power Management Controller (APMC): Normal, Wait, Slow, Standby and Power-down modes; (8)IEEE 1149.1 JTAG Boundary-scan on all Digital Pins; (9)Fully Static Operation: 0 Hz to 33 MHz; (10)2.7V to 3.6V Core Operating Range; (11)2.7V to 5.5V I/O Operating Range; (12)2.7V to 3.6V Analog Operating Range; (13)1.8V to 3.6V Backup Battery Operating Range; (14)2.7V to 3.6V Oscillator and PLL Operating Range; (15)-40℃ to +85℃ Temperature Range; (16)Available in a 176-lead LQFP (Green) and a 176-ball BGAPackage(RoHS-compliant).
