AT89C51-24PI

high-performance CMOS 8-bit microcomputer, 24MHZ, 40DIP, 4K, -1.0V to +7.0V, 15.0 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: AT89C51-24PI

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:AT89C51-24PI
US $1.00 - 5.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

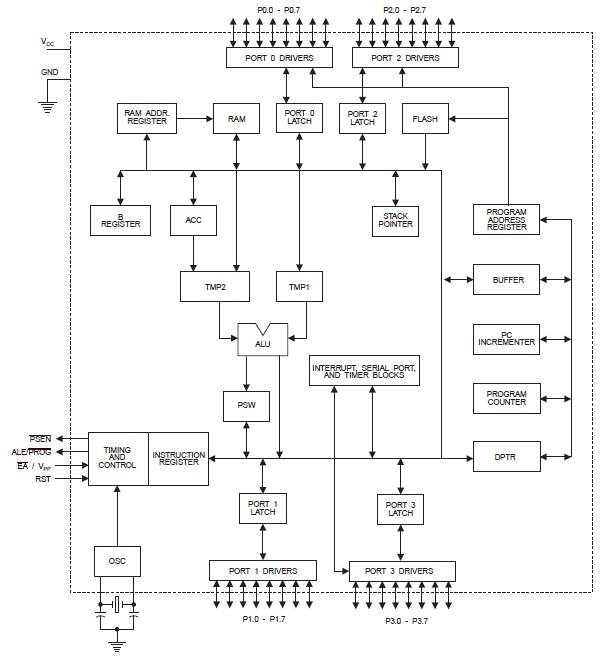

The AT89C51-24PI is a low-power, high-performance CMOS 8-bit microcomputer with 4K bytes of Flash programmable and erasable read only memory (PEROM). The AT89C51-24PI is manufactured using Atmel high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C51-24PI is a powerful microcomputer which provides a highly-flexible and cost-effective solution to many embedded control applications.

Parametrics

AT89C51-24PI absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.

Features

AT89C51-24PI features: (1)Compatible with MCS-51 Products; (2)4K Bytes of In-System Reprogrammable Flash Memory: Endurance: 1,000 Write/Erase Cycles; (3)Fully Static Operation: 0 Hz to 24 MHz; (4)Three-level Program Memory Lock; (5)128 x 8-bit Internal RAM; (6)32 Programmable I/O Lines; (7)Two 16-bit Timer/Counters; (8)Six Interrupt Sources; (9)Programmable Serial Channel; (10)Low-power Idle and Power-down Modes.
