AT25640AN-10SU-2.7

SPI Serial EEPROM, 64KBIT, 20MHZ, 8SOIC, 2.7V to 5.5V, 5.0 mA, AT25640AN-10SU-2.7

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: AT25640AN-10SU-2.7

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:AT25640AN-10SU-2.7
US $1.00 - 10.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

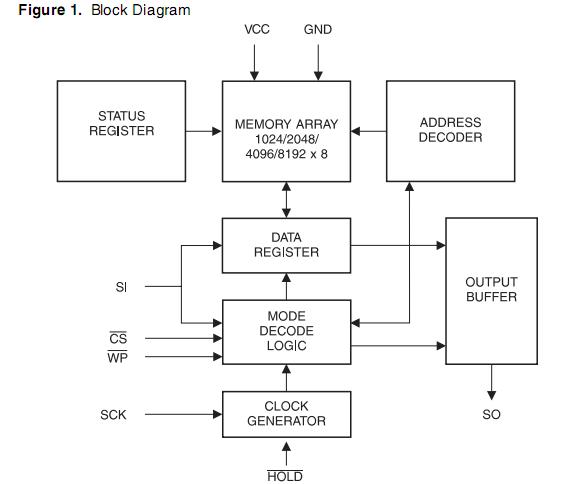

The AT25640AN-10SU-2.7 is a SPI Serial EEPROM. It provides 65536 bits of serial electrically-erasable programmable read-only memory (EEPROM) organized as 8192 words of 8 bits each. The AT25640AN-10SU-2.7 is optimized for use in many automotive applications where low-power and low-voltage operation are essential. The AT25640AN-10SU-2.7 is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP packages.

Parametrics

AT25640AN-10SU-2.7 absolute maximum ratings: (1)Operating Temperature:-40℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4)Maximum Operating Voltage:6.25V; (5)DC Output Current:5.0 mA.

Features

AT25640AN-10SU-2.7 features: (1)Serial Peripheral Interface (SPI) Compatible; (2)Supports SPI Modes 0 (0,0) and 3 (1,1): Data Sheet Describes Mode 0 Operation; (3)Medium-voltage and Standard-voltage Operation: 2.7 (VCC = 2.7V to 5.5V); (4)Extended Temperature Range:–40℃ to 125℃; (5)5.0 MHz Clock Rate; (6)32-byte Page Mode; (7)Block Write Protection: Protect 1/4, 1/2, or Entire Array; (8)Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection; (9)Self-timed Write Cycle (2 ms [5V] typical); (10)High Reliability: Endurance: One Million Write Cycles, Data Retention: 100 Years; (11)8-lead PDIP, 8-lead JEDEC SOIC Packages and 8-lead TSSOP Packages.
