AT24HC04BN-SH-T

Two-wire Serial EEPROM, 1.8V, 4KBIT, 1MHZ, 8SOIC, 5.0 mA, AT24HC04BN-SH-T

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: AT24HC04BN-SH-T

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-15

From Other Seller

Part Number:AT24HC04BN-SH-T
US $1.00 - 10.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
BD9774HFP

US $0.70 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

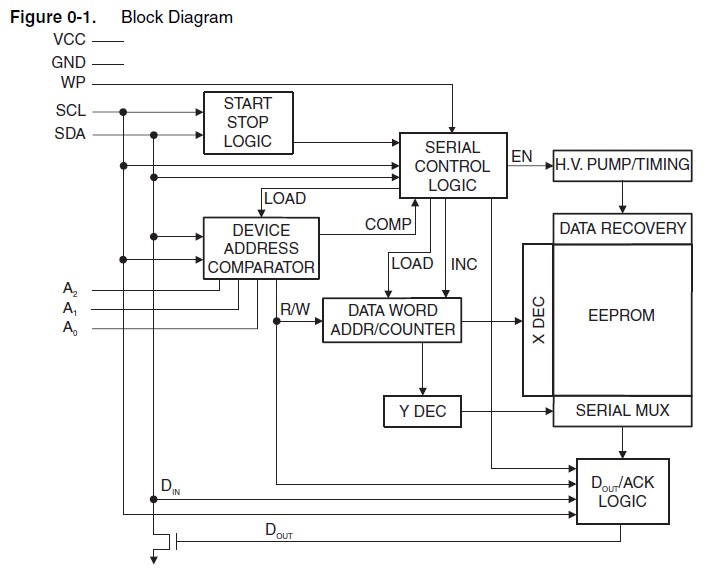

The AT24HC04BN-SH-T is a Two-wire Serial EEPROM. It provides 4096 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 512 words of 8 bits each. The AT24HC04BN-SH-T is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24HC04BN-SH-T is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP packages and is accessed via a two-wire serial interface. In addition, the entire family is available in 1.8V (1.8V to 5.5V) version.

Parametrics

AT24HC04BN-SH-T absolute maximum ratings: (1)Operating Temperature: –40℃ to +125℃; (2)Storage Temperature: –65℃ to + 150℃; (3)Voltage on Any Pin with Respect to Ground: –1.0 V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.

Features

AT24HC04BN-SH-T features: (1)Write Protect Pin for Hardware Data Protection: Utilizes Different Array Protection Compared to the AT24C04B; (2)Low-voltage and Standard-voltage Operation: 1.8 (VCC = 1.8V to 5.5V); (3)Internally Organized 512 x 8 (4K); (4)Two-wire Serial Interface; (5)Schmitt Trigger, Filtered Inputs for Noise Suppression; (6)Bidirectional Data Transfer Protocol; (7)1 MHz (5V) and 400 kHz (1.8V, 2.5V, 2.7V) Clock Rate; (8)16-byte Page; (9)Partial Page Writes Allowed; (10)Self-timed Write Cycle (5 ms Max); (11)High Reliability: Endurance: One Million Write Cycles; Data Retention: 100 Years; (12)8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP Packages; (13)Die Sales: Wafer Form, Tape and Reel, and Bumped Wafers.
