Product Summary

The TMS320F2802PZA-60 is a digital signal processor. It is highly integrated, high-performance solutions for demanding control applications.

Parametrics

TMS320F2802PZA-60 absolute maximum ratings: (1)Supply voltage range, VDDIO, VDD3VFL:–0.3 V to 4.6 V; (2)Supply voltage range, VDDA2, VDDAIO: –0.3 V to 4.6 V; (3)Supply voltage range, VDD: –0.3 V to 2.5 V; (4)Supply voltage range, VDD1A18, VDD2A18: –0.3 V to 2.5 V; (5)Supply voltage range, VSSA2, VSSAIO, VSS1AGND, VSS2AGND: –0.3 V to 0.3 V; (6)Input voltage range, VIN: –0.3 V to 4.6 V; (7)Output voltage range, VO: –0.3 V to 4.6 V; (8)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (9)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (10)Operating ambient temperature ranges: –40℃ to 85℃; (11)Junction temperature range, TJ: –40℃ to 150℃; (12)Storage temperature range, Tstg: –65℃ to 150℃.

Features

TMS320F2802PZA-60 features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU; (4)On-Chip Memory; (5)Boot ROM (4K x 16); (6)Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts; (7)SPeripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts.

Diagrams

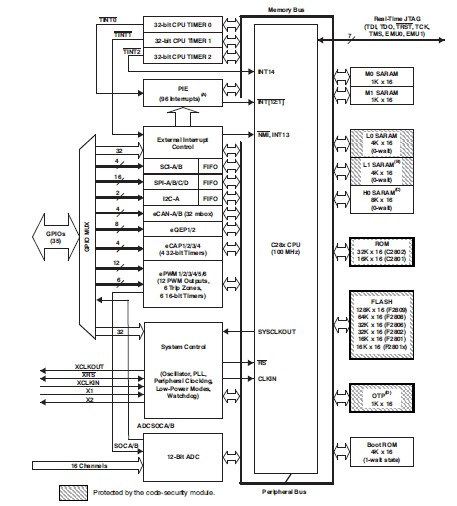

TMS320F2802PZA-60 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TMS320F2802PZA-60
TMS320F2802PZA-60
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) 32B Dig Signal Controller
Data Sheet
0-1: $6.33
1-25: $5.33
25-100: $4.90
100-250: $4.46
