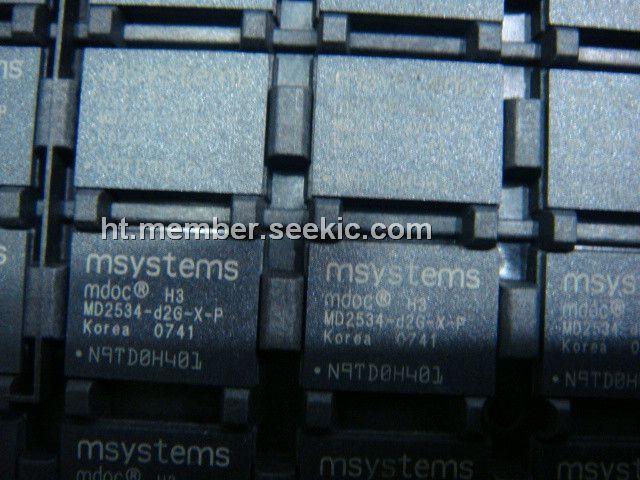

Product Summary

The MD2534-D2G-XPY is an Embedded Flash Drive (EFD) designed for mobile handsets and consumer electronics devices. The MD2534-D2G-XPY is the new generation of the successful msystems’mDOC product family, enabling tens of millions of handsets and other mobile devices since the year 2000.

Parametrics

MD2534-D2G-XPY absolute maximum ratings: (1)1.8V DC supply voltage VCC1: -0.3 to 2 V; (2)3.3V DC supply voltage VCC: -0.3 to 4 V; (3)Input pin voltage Vin: -0.3 to 3.6 V; (4)Ambient Temperature OTR: -40 to 85℃; (5)Storage temperature Tstg: -55 to +150℃.

Features

MD2534-D2G-XPY features: (1)32KB Programmable Boot Block with XIP capability to replace boot ROM or NOR; (2)128KB Virtual RAM IPL; (3)254KB Paged RAM IPL; (4)Boot Agent for automatic download of boot code to the Programmable Boot Block; (5)Asynchronous Boot mode to enable ARM-based CPUs, e.g. TI OMAP, Intel PXAxxx, to boot without the need for external glue logic; (6)Exceptional boot performance with Burst operation and DMA support enhanced by external clock.

Diagrams

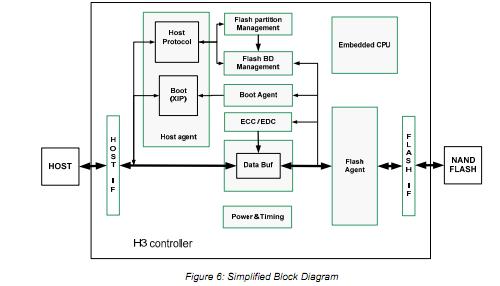

MD2534-D2G-XPY block diagram

MD2533-D16G-X-P
MD2533-D16G-X-P

IC MDOC H3 16GB FBGA
Data Sheet
Negotiable
MD2533-D16G-X-P/Y
MD2533-D16G-X-P/Y

IC MDOC H3 16GB FBGA
Data Sheet
Negotiable
MD2533-D8G-X-P
MD2533-D8G-X-P

IC MDOC H3 8GB FBGA
Data Sheet
Negotiable
MD2533-D8G-X-P/Y
MD2533-D8G-X-P/Y

IC MDOC H3 8GB FBGA
Data Sheet
Negotiable
MD2534-D1G-X-P
MD2534-D1G-X-P

IC MDOC H3 1GB FBGA
Data Sheet
Negotiable
MD2534-D1G-X-P/Y
MD2534-D1G-X-P/Y

IC MDOC H3 1GB 115-BGA
Data Sheet
Negotiable
