Product Summary

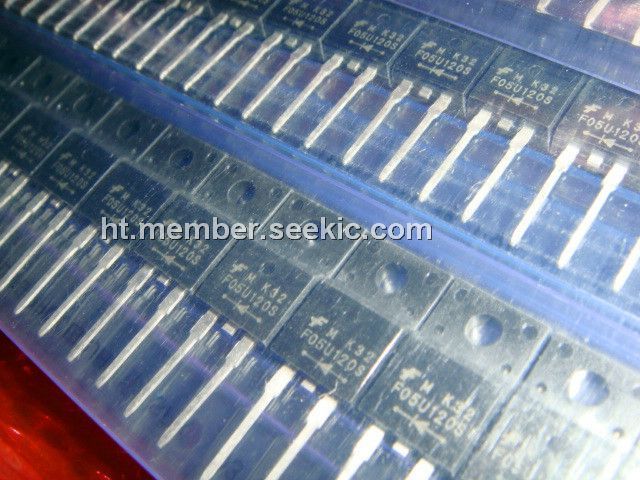

The FFPF05U120STU is an ultra fast recovery power rectifier. The applications are (1)General purpose; (2)Switching mode power supply; (3)Free-wheeling diode for motor application; (4)Power switching circuits.
Parametrics
FFPF05U120STU absolute maximum ratings: (1)VRRM, Peak Repetitive Reverse Voltage: 1200 V; (2)IF(AV) Average Rectified Forward Current: 5 A; (3)IFSM Non-repetitive Peak Surge Current: 30 A; (4)TJ, TSTG Operating Junction and Storage Temperature: - 65 to +150℃.
Features
FFPF05U120STU features: (1)High voltage and high reliability; (2)High speed switching; (3)Low forward voltage.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FFPF05U120STU |
Fairchild Semiconductor |
Rectifiers 5.0a/1200V Rectifier Ultrafast Recovery |
Data Sheet |
Negotiable |
|
||||||||||||
