DS18B20Z+

DS18B20Z+, Digital Thermometer, SOP, -0.5V to 6V, 1mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: DS18B20Z+

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-11

From Other Seller

Part Number:DS18B20Z+
US $1.00 - 3.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

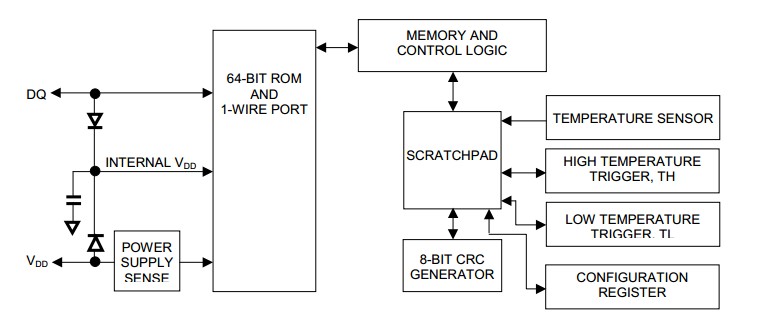

The DS18B20Z+ is a Digital Thermometer. It provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20Z+ over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to the DS18B20Z+. Power for reading, writing, and performing temperature conversions can be derived from the data line itself with no need for an external power source.

Parametrics

DS18B20Z+ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.5V to +6.0V; (2)Operating Temperature: -55 to +125℃; (3)Storage Temperature: -55 to +125℃; (4)Soldering Temperature: See J-STD-020A specification.

Features

DS18B20Z+ features: (1)Unique 1-Wire interface requires only one port pin for communication; (2)Multidrop capability simplifies distributed temperature sensing applications; (3)Requires no external components; (4)Can be powered from data line. Power supply range is 3.0V to 5.5V; (5)Zero standby power required; (6)Measures temperatures from -55℃ to +125℃. Fahrenheit equivalent is -67°F to +257°F; (7)±0.5℃ accuracy from -10 to +85℃; (8)Thermometer resolution is programmable from 9 to 12 bits; (9)Converts 12-bit temperature to digital word in 750 ms (max.); (10)User-definable, nonvolatile temperature alarm settings; (11)Alarm search command identifies and addresses devices whose temperature is outside of programmed limits (temperature alarm condition); (12)Applications include thermostatic controls, industrial systems, consumer products, thermometers, or any thermally sensitive system.
